TASCAM Sonicview 24XP Digital Mixer
Intuitive Operation at Your Fingertips

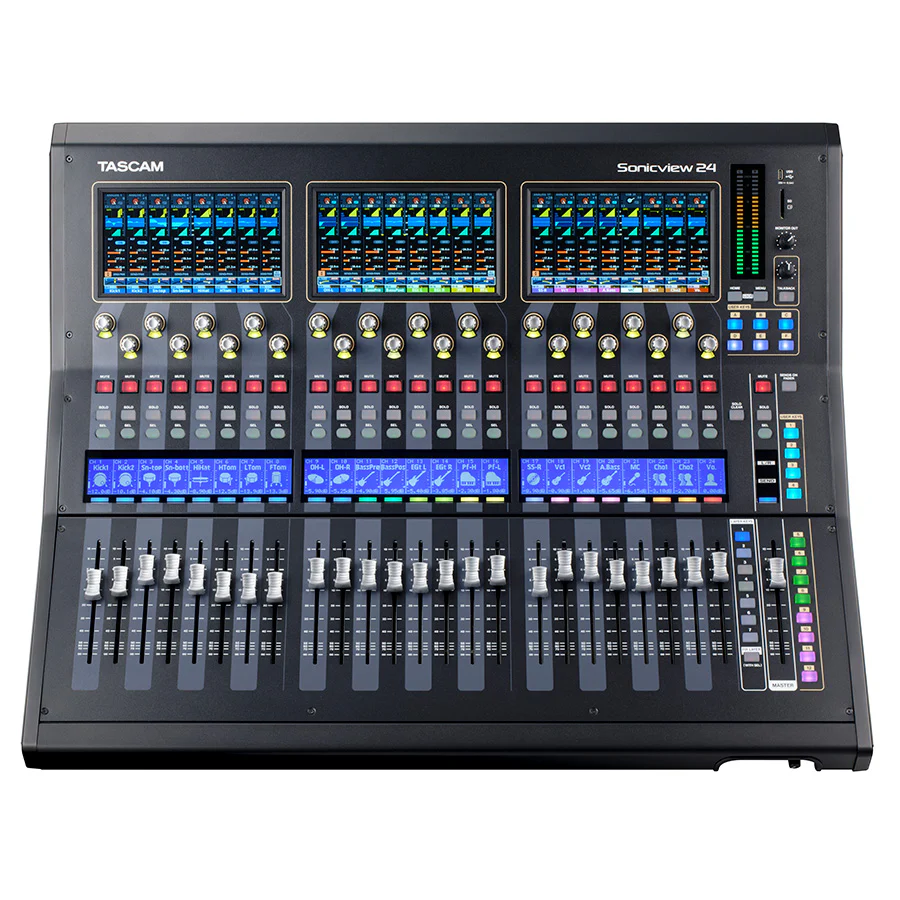

The TASCAM Sonicview 24XP offers motorized channel faders in three banks of eight, plus a motorized stereo fader for the main bus. Above each bank of channel faders is a color touch panel that allows you to view entire mixer channels, or get down to details, controlling each parameter with your fingertip.
The Amazing VIEW
Truly the next generation in mixer user interfaces, the powerful intuitive TASCAM Visual Interactive Ergonomic Workflow (VIEW) system lets you quickly and easily configure the TASCAM Sonicview 24XP's three touch screens.
Thanks to the VIEW user interface, there are three different ways to view your settings, and each touch screen can be configured independently, so you can monitor and control any combination of settings you want, in whichever screens you want, whenever you want. For instance, you could monitor levels for eight channels of vocals on screen 1, while tweaking the parametric EQ on a drum submix in screen 2 and keeping an eye on the output-bus level and compression curve on screen 3.
- To view the status of any eight adjacent channels at a glance, as you would see on vertical channel strips with an analog mixer, choose Channel Strip View.
- In Module View, you can monitor and control any three sets of parameters for one single channel, including the compressor, graphic EQ, aux/effects send, and more.
- Individual View is the ultimate in customized displays. View any functions for any channel, group of channels, and more—all on different screens, simultaneously. For instance, you could simultaneously monitor the output bus meter, adjust a graphic equalizer, and monitor levels on important input channels.
Channel Strip View
Channel Strip View lets you monitor and control eight adjacent channels, and view them as virtual channel strips like an analog mixer layout.
Module View
Module View lets you monitor and control any three sets of parameters simultaneously for one single channel.
Individual View
Individual View lets you monitor and control a custom selection of functions for any channel or group of channels.
High-end Audio Quality
TASCAM Sonicview delivers the finest audio performance in its class, thanks to a 54-bit float-point FPGA mixing engine; continuous, high-definition 32-bit/96 kHz sampling; and 32-bit analog-to-digital converters. The mixing engine's float-point processing makes it possible to flexibly change levels without compromising resolution and FPGA mixing engine make it possible to ensures ultra-low latency, even in analog-to-analog connections. The result is no-compromises performance, including with Dante networks and in-line monitoring systems.
Click for more on FPGA mixing engine, 54-bit float-point processing and 96kHz processing
Input Channels and Processing

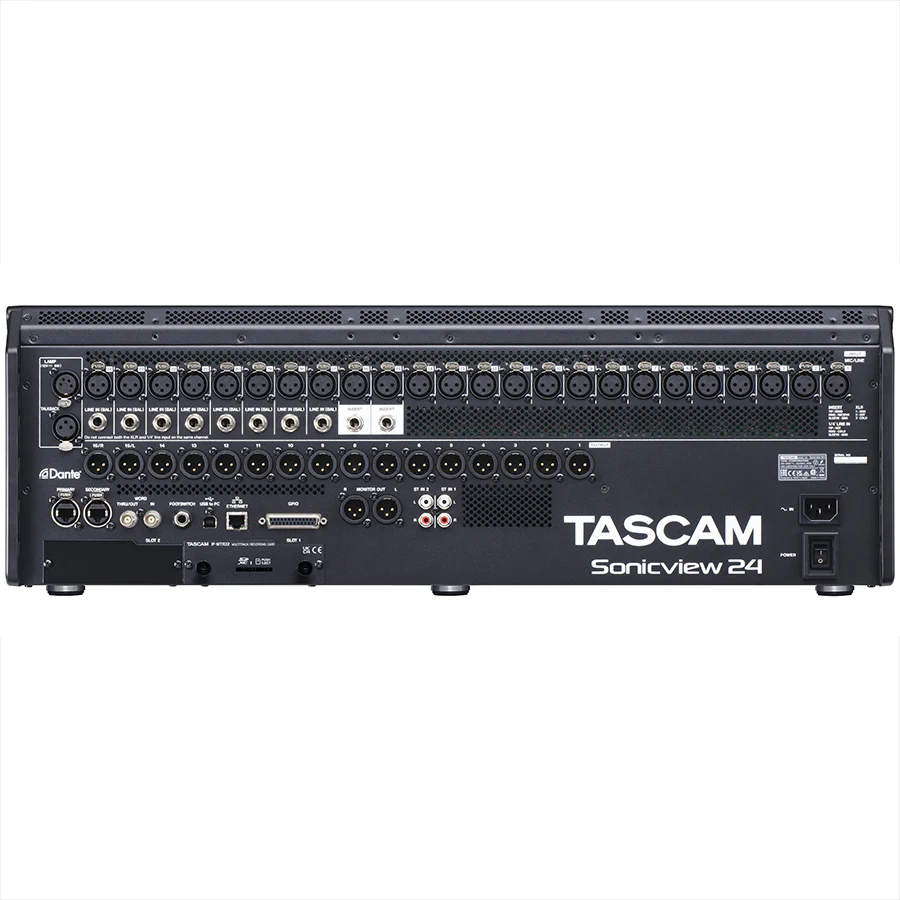

The TASCAM Sonicview 24XP offers 24 channels with XLR mic/line inputs and 8 channels with both XLR mic inputs and balanced TRS line inputs. You also get TRS insert points on two channels, two stereo pairs of RCA aux inputs, and an XLR input for a talkback mic.
Channel Control and Processing
There's much more to TASCAM Sonicview than meets the eye. Internally, TASCAM Sonicview recording mixers have a generous 40 mono channels, 2 stereo channels and 4 stereo FX return channels so you can fly in backing tracks to make a small praise band sound huge, accommodate additional physical audio inputs via the expansion slots for larger ensembles, manage sources from every part of a venue via the Dante network, and mix dozens of DAW tracks. Eight DCAs enable you to easily control groups of channels. The programmable layer keys select which custom combination of channels and output buses are controlled by the motorized faders.
Each input channel can use any or all of 11 processing functions, which can be independently set:
| Delay (Input/Pre-fader) | Phase | Digital Trim | High-pass Filter |
| Gate/Expander/De-esser | 4-band Parametric EQ | Compressor/Ducker | Solo |
| Mix 1-22 Send/Pan (Pre/Post) | FX 1-4 Send/Pan (Pre/Post) | Fader/Pan/Mute to L/R |
Top-of-the Line Class 1 HDIA Mic Preamps
Each TASCAM Sonicview microphone input feeds a TASCAM Class 1 HDIA (High Definition Instrumentation Architecture) preamp—the finest mic preamp we've ever made. Thanks to an instrumentation amplifier with extremely good noise characteristics in the first stage, Class 1 HDIA microphone preamps exhibit excellent EIN, signal-to-noise ratio, distortion ratio, and frequency response. TASCAM Sonicview ultra definition mic preamps will pick up the slightest nuance from rosin on a violin bow to the subtle dynamic changes of a voice or saxophone. The mic inputs can accept up to +32 dBu signals, providing plenty of headroom for sudden level increases.
The combination of Class 1 HDIA preamps, 32-bit/96 kHz ADCs, and our 54-bit FPGA mixing engine is impressive but we didn't stop there: We conducted extensive internal and external evaluations to tune TASCAM Sonicview recording mixers for optimal performance. The result is best-in-class sound that will never disappoint.
Click for more on Class 1 HDIA mic-preamps
Built-in USB Audio Interface and Stereo Recording
TASCAM Sonicview's integrated 32-in/32-out USB audio interface makes it a first-rate front end for recording and broadcast studios, as well as for capturing live events. Record your choice of channel direct outs, flex buses, and the L/R main bus to your favorite DAW at up to 96 kHz with the same 32-bit precision used throughout the TASCAM Sonicview.
You can simultaneously capture the main mix directly to the onboard stereo SD/USB recorder — handy when the band wants to listen to their performance at the hotel or on the bus. A top-panel port also lets you record in stereo to a USB flash drive.
Click for more on 32-bit quality internally and via USB
Built-in 32-track SD Recording too!
TASCAM Sonicview 24XP offers multiple ways to record. In addition to its integrated audio interface, the TASCAM Sonicview 24XP comes with a integrated IF-MTR32 multi-track recording card, enabling you to capture 32 channels directly to an SDXC card. The SD recorder supports simultaneous 32-channel punch-in/punch-out, pre-record, auto-record, and markers. Best of all, it automatically saves and closes the file every 60 seconds during recording to safeguard against data loss so you can let the recorder do it's job worry-free while you focus on mixing.
* TASCAM Sonicview 24XP US version onlyDante-enabled for Superior Networking
Dante® audio-over-IP networks integrate thousands of concert touring systems, as well as installed systems in recording studios, radio stations, corporate boardrooms, houses of worship, and much more. TASCAM Sonicview consoles can serve as the audio center of these systems, thanks to a built-in 64-in/64-out Dante interface that supports Dante Domain Manager and have AES67 and SMPTE ST 2110 interoperability. Two Dante ports enable redundant streams.
Click here for more on Dante capability
Remote Control and Offline Editing
Whether onstage, backstage, in a control room, or at the rear of a concert hall, you're always in full control of your TASCAM Sonicview 24XP recording mixer. Just connect a Wi-Fi router to the TASCAM Sonicview's Ethernet port and use free TASCAM Sonicview Control software for macOS, Windows, and iPadOS to manage your TASCAM Sonicview 24XP from virtually anywhere in the venue. Edit settings offline in advance so you’re ready to go when a session or show begins, then make adjustments from the console or from the software.
Work Quickly with Function Keys
TASCAM Sonicview offers intuitive, analog-like operation, while providing a variety of convenient digital functions that can be customized as needed. Eighteen user-defined function keys can be assigned to recording with the internal recorder, playback, and more. Several keys are conveniently preassigned to functions such as Sends On Fader and Snapshot Recall but you can reassign them as desired. A footswitch (not included) can be used to tap in delay-time settings.
Click for more on User Keys
Clear, Mistake-free Navigation
When you're mixing a show, broadcast, or crucial recording session, you can't afford to hit the wrong button or grab the wrong control. TASCAM Sonicview's mixing surface makes it easy to see at a glance what you're controlling, even in a dark concert hall. Each channel strip includes a channel-name LCD with a full-color LED. The User keys feature full-color LEDs, so you can group each input source and function by color and view them easily. The Solo and Channel Select keys have distinctive shapes, and the Mute key is guarded with a cap. With these features and the customizable touch panels, you always know where you are and what you're controlling.
An additional monitor bus system and OSC/talkback capability add more versatility for broadcast and monitoring applications (supported in V1.5.0)
Two monitor buses are now available with V1.5.0, Monitor 1 and Monitor 2. Each monitor section comes with 6 switchable monitor source presets with essential functions such as MUTE/DIMMER. In addition, a location setting has been added to automatically mute the monitor speakers when in the same enclosed space as a live microphone. Input sources can be freely assigned in the talkback section. Also, outputs can now be directly assigned into each bus or monitor, or to output routers. All of these settings and OSC on/off settings can be assigned to, and controlled by USER keys for quick control a variety of broadcast system and monitoring environments.
