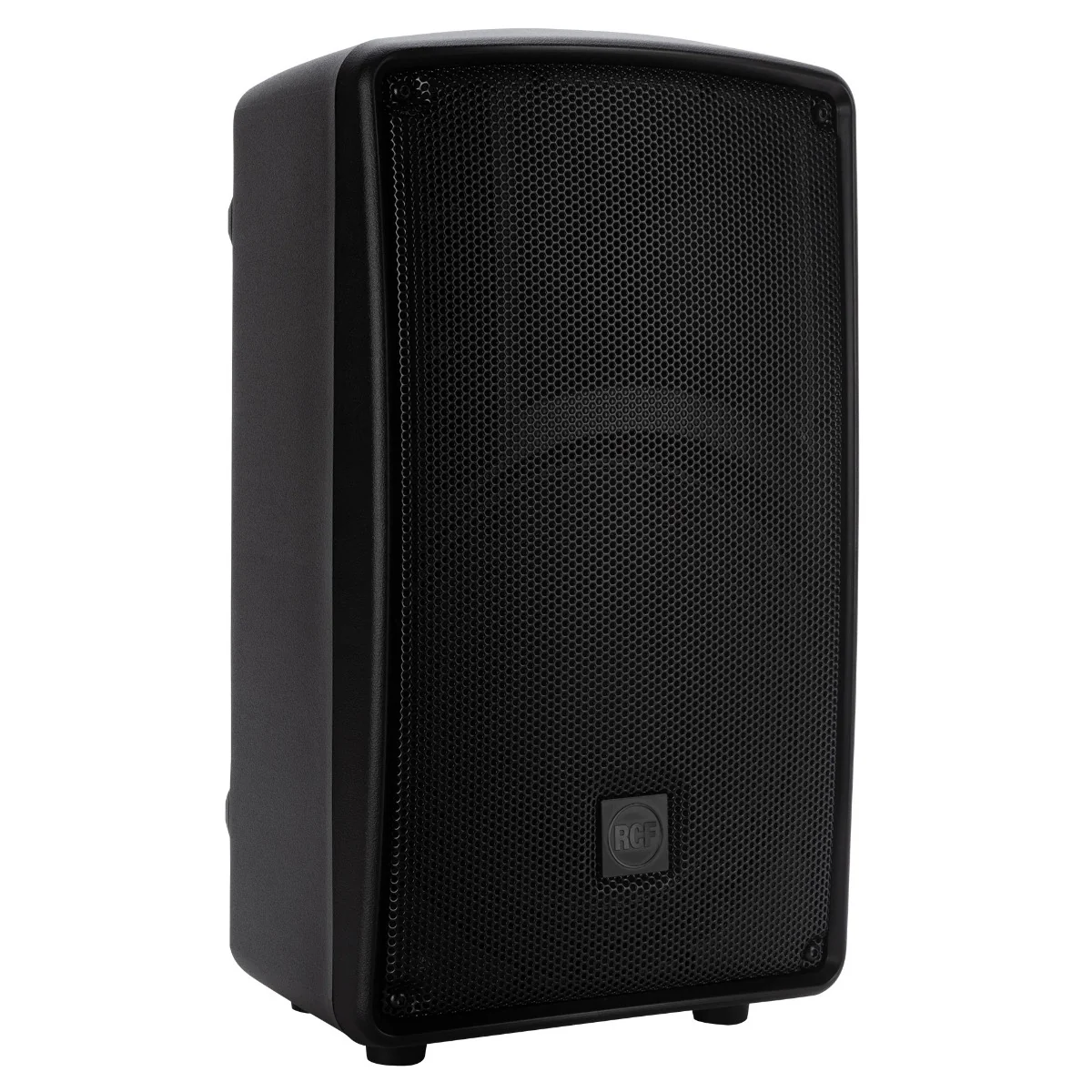

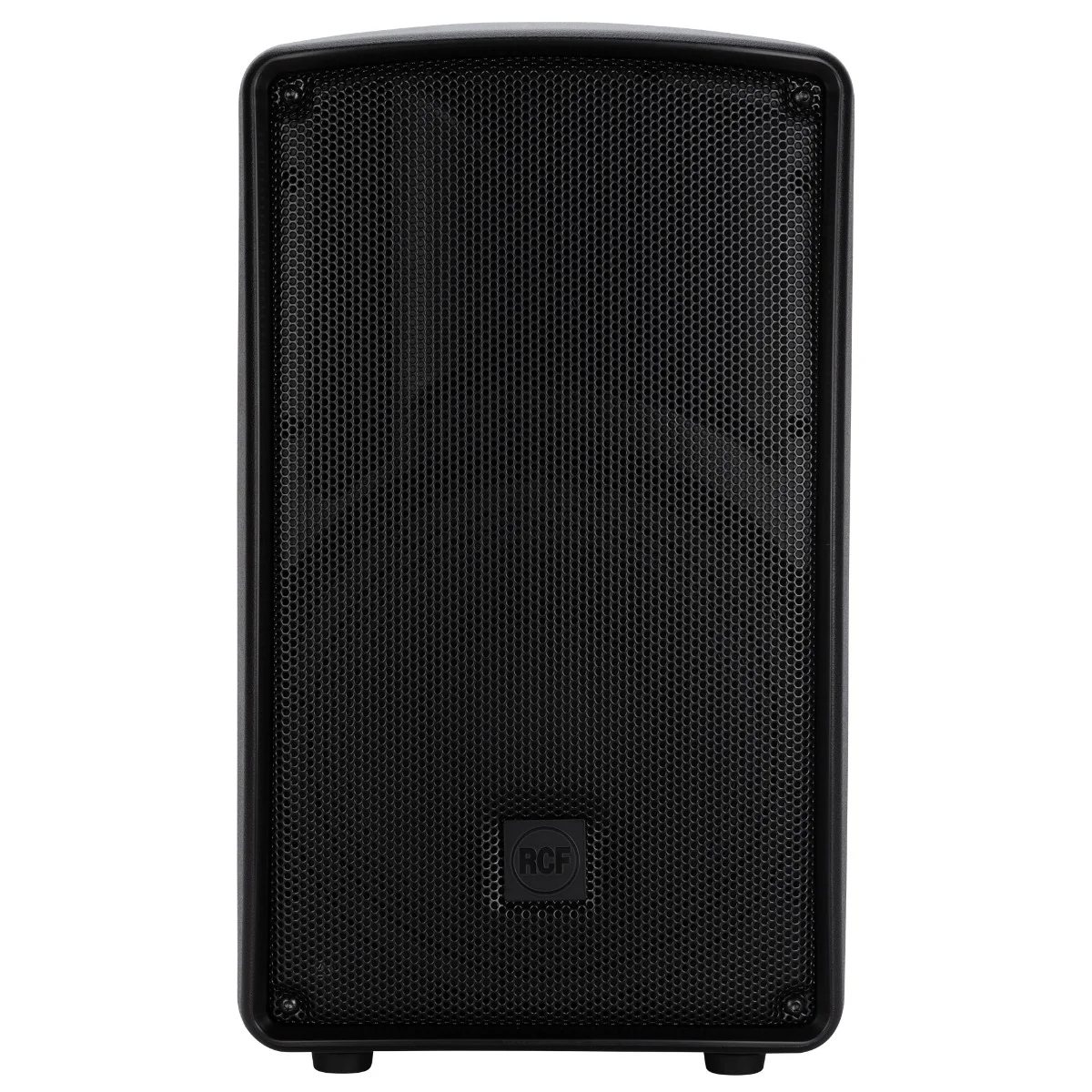

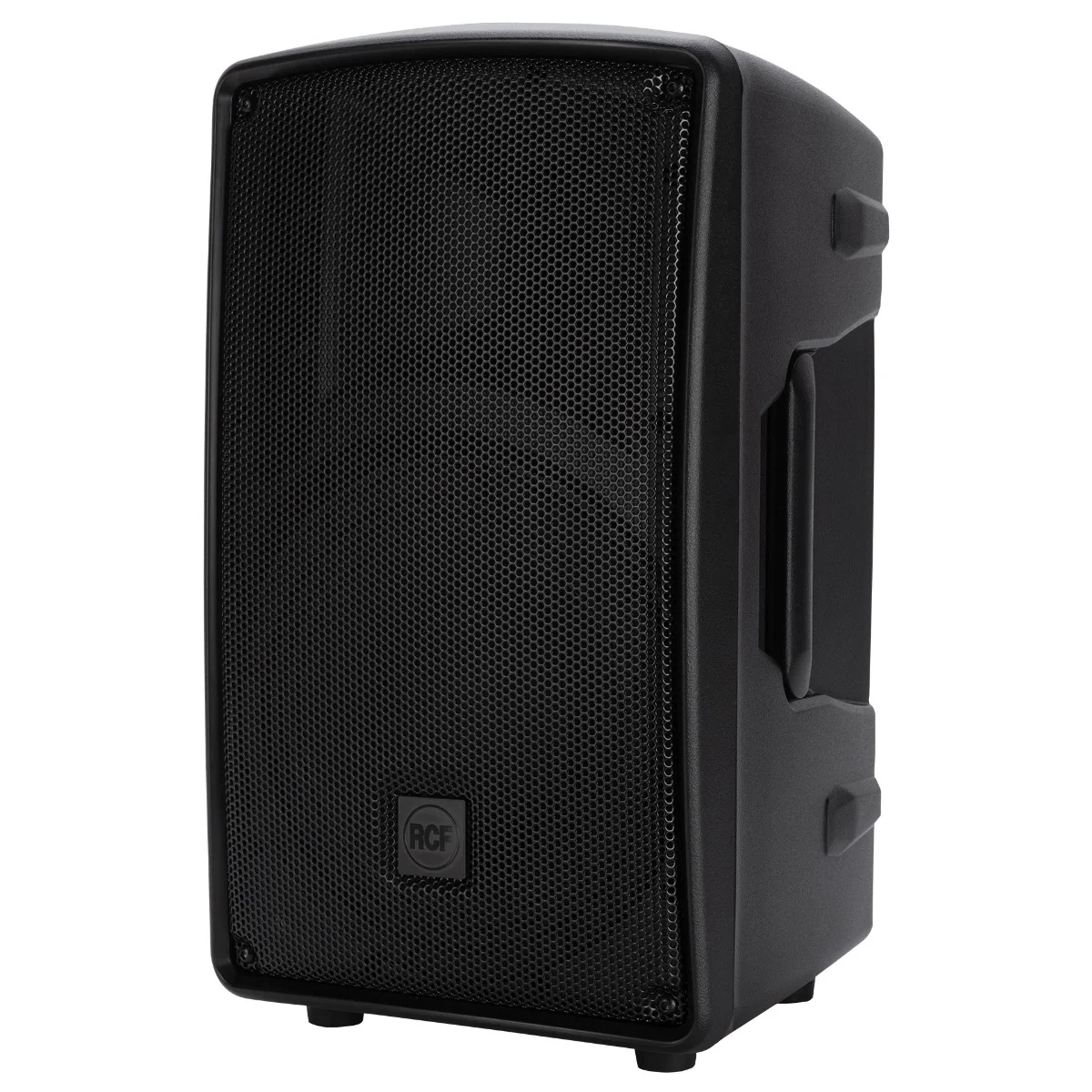

RCF HD 10-A MK5 ACTIVE TWO-WAY SPEAKER
HD 10-A mk5 active speaker boosts performance with a high-power professional 10" woofer and a 1.0" HF driver, an 800W 2ch Class-D amplifier, and innovative FiRPHASE and Bass Motion Control processing. Vocals are natural, the sound is clear at long distances, SPL power is stable at very high levels. The strength of HD series speakers comes from decades of experience building gear for the touring industry, equipping this compact cabinet with power and reliability expected for life on the road. Elegantly designed, the lightweight polypropylene cabinet with internal reinforcement offers maximum strength. The speaker also includes a steel pole mount, threaded inserts for rigging, and rubber handgrips. D-LINE offers working DJs and musicians professional sound designed with music in mind.

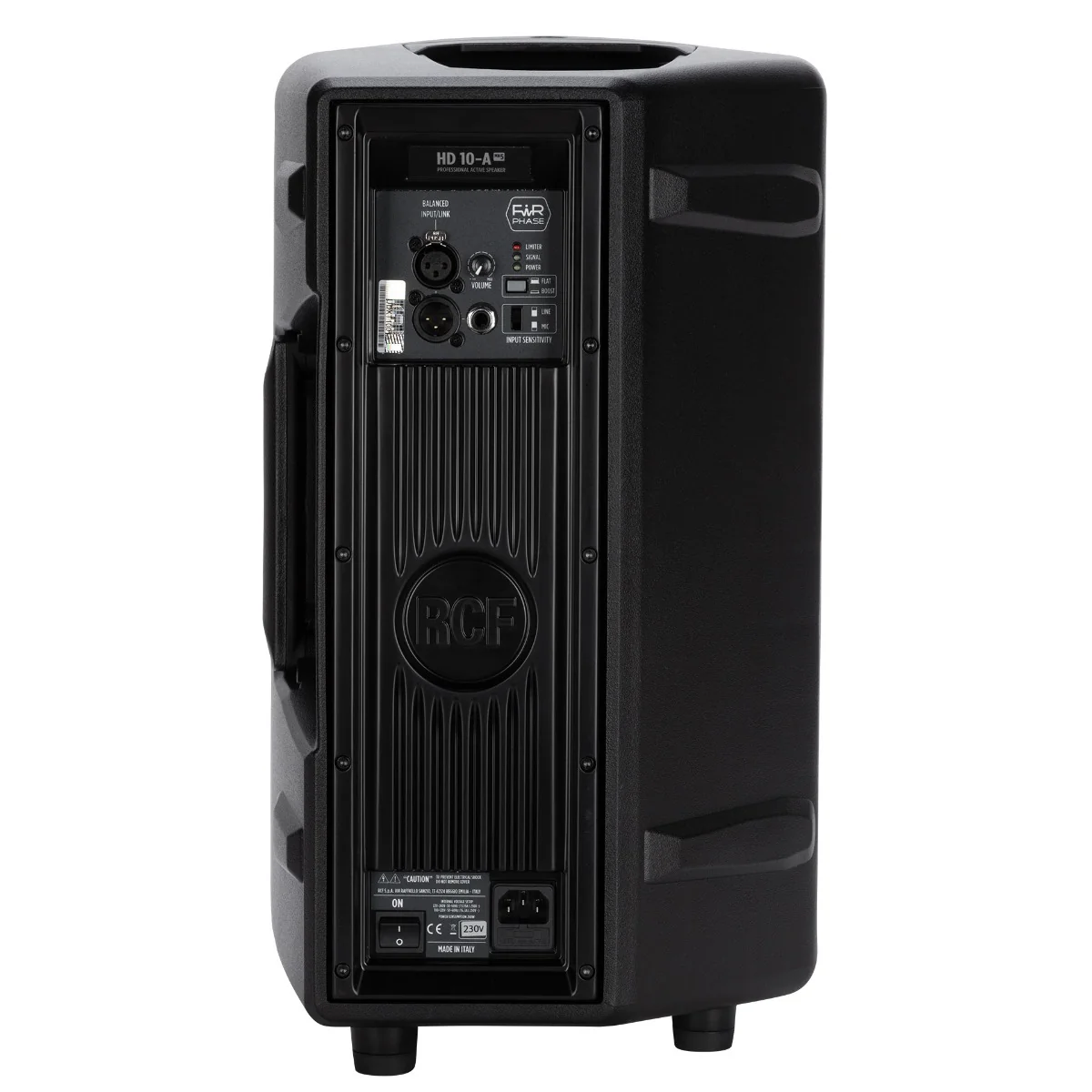

IN/OUT CONNECTORS
The amplifier presents both XLR In/Out connectors and a Jack input for maximum connection versatility.
SWITCHABLE EQ MODE
A switchable EQ Mode makes it easier to select among two different equalization presets: BOOST - Extended response switch that slightly emphasizes the bass response for playback music and low volume applications; FLAT - Linear response switch, when the speaker is used to amplify a live mix. The amplifier has a built-in limiter circuit to prevent clipping or overdriving the transducers.
MIC/LINE SWITCH
A useful Mic/Line switch helps to adjust the input sensitivity. When used for speech, the [Mic] setting allows using a microphone directly with the speaker. Set the selector to [Line] when using the speaker for live music or playback.
VOLUME KNOB
An easy-to-reach volume knob on the back allows setting the overall volume of the speaker according to its application.
STATUS LEDs
3 status LEDs – Power / Signal / Limiter are provided for monitoring the syste
- 128 dB Max SPL
- 800 Watts 2-way amplifier
- DSP Processing with FiRPHASE and Bass Motion Control
- 1.0” HF driver
- 10” woofer, high power, 2.0” voice coil
- 90° x 60°, wide dispersion constant directivity horn
- Silent Fan-less Class-D Amplifier
- Mylar/Ferrite driver - Kapton former coil
RENTAL PROOF

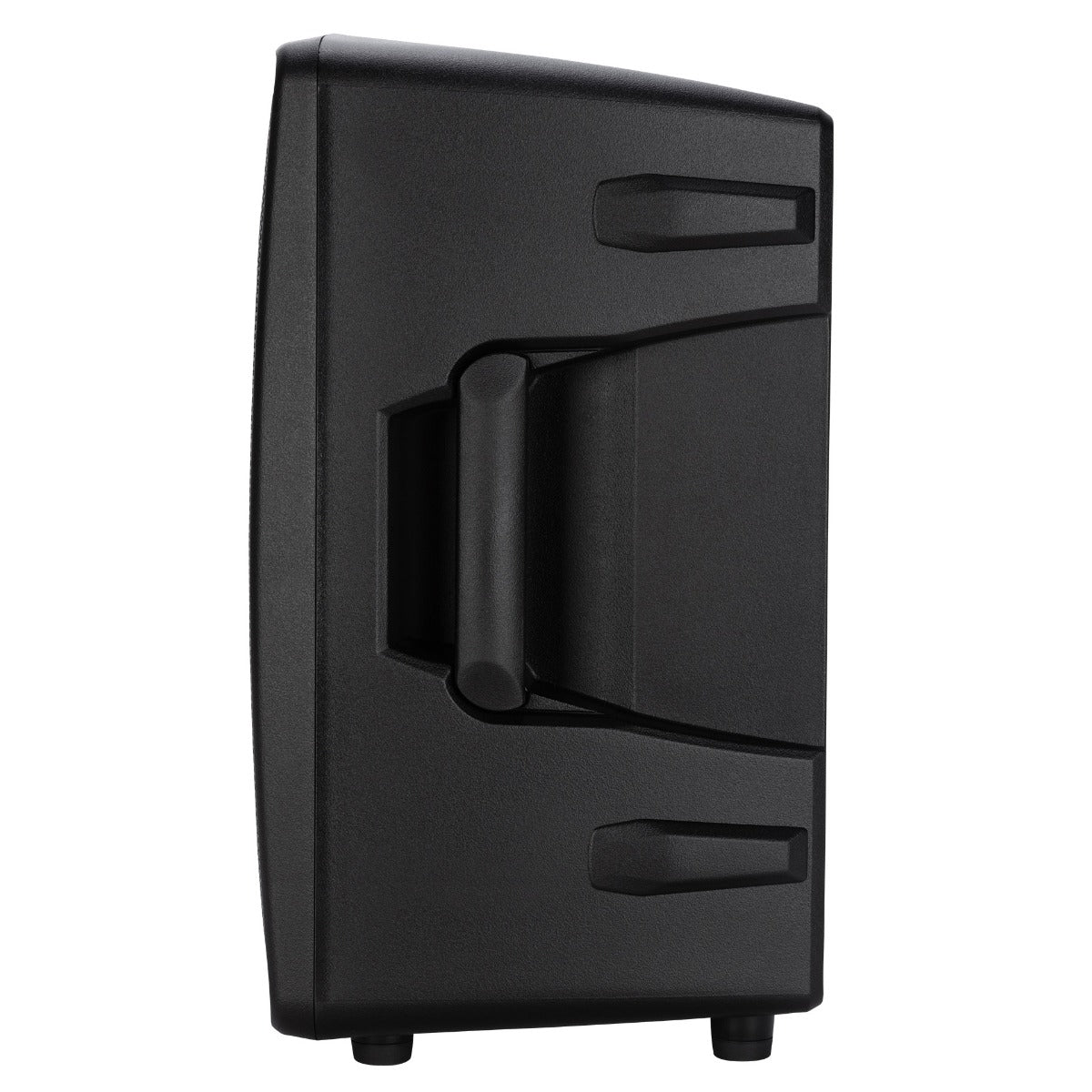

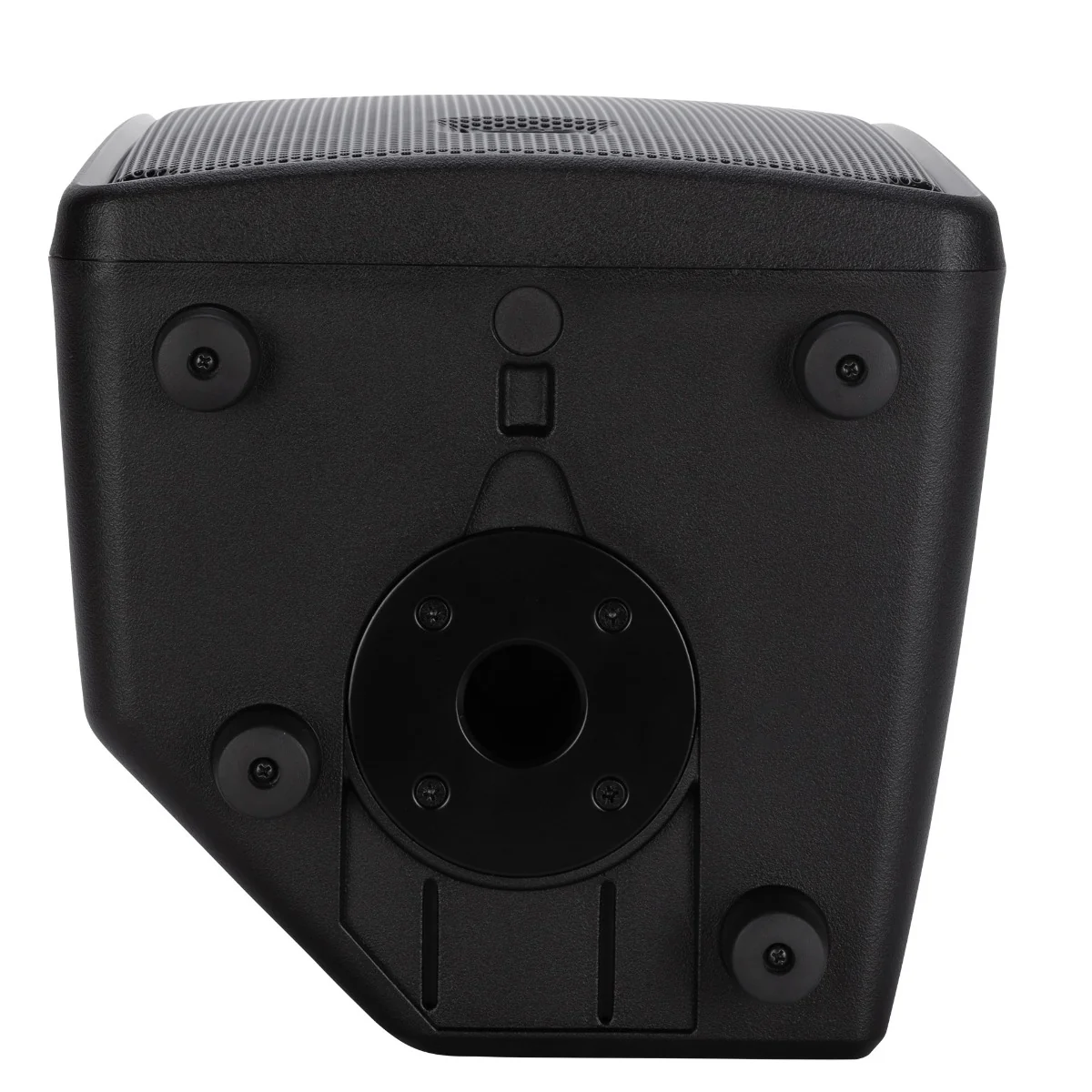

D-LINE cabinets are molded on a special polypropylene composite material designed to dampen down vibrations even at maximum volume settings. From molding to the final texture, D-LINE offers the maximum reliability and strength for use on the road. The reflex port has been resized to offer better efficiency. The HD 10-A is equipped with a top handle and a side handle with a rubber hand grip for greater portability. At the bottom, a rugged steel pole mount has been installed in all models. The new cabinet shape will allow every D-LINE model to be used as it is, standing on a pole or for stage monitoring. Two M10 threaded inserts are provided for optional mounting hardware in Installed Sound Applications.
SUPERIOR TRANSDUCERS
The powerful 1.0” diaphragm compression driver of the HD 10-A mk5 features extended dispersion control and high efficiency at long distance. The 10” woofer offers an extremely linear response and a precise, deep low-frequency control. All compression drivers and transducers are precision built, taking advantage of RCF’s superior knowledge and experience dedicated to achieving extremely high standards.
Read More
POWERFUL CLASS D AMPLIFIERS
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the D Line amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
HIGHLY DEFINED PERFORMANCE
The cabinet shape makes it easy to use the speaker for stage monitoring. Two M10 threaded inserts are available for optional mounting hardware, making the speakers perfect for use in wall-mounted or flown install applications.
Original: $910.93
-65%$910.93
$318.83Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
HD 10-A mk5 active speaker boosts performance with a high-power professional 10" woofer and a 1.0" HF driver, an 800W 2ch Class-D amplifier, and innovative FiRPHASE and Bass Motion Control processing. Vocals are natural, the sound is clear at long distances, SPL power is stable at very high levels. The strength of HD series speakers comes from decades of experience building gear for the touring industry, equipping this compact cabinet with power and reliability expected for life on the road. Elegantly designed, the lightweight polypropylene cabinet with internal reinforcement offers maximum strength. The speaker also includes a steel pole mount, threaded inserts for rigging, and rubber handgrips. D-LINE offers working DJs and musicians professional sound designed with music in mind.
IN/OUT CONNECTORS
The amplifier presents both XLR In/Out connectors and a Jack input for maximum connection versatility.
SWITCHABLE EQ MODE
A switchable EQ Mode makes it easier to select among two different equalization presets: BOOST - Extended response switch that slightly emphasizes the bass response for playback music and low volume applications; FLAT - Linear response switch, when the speaker is used to amplify a live mix. The amplifier has a built-in limiter circuit to prevent clipping or overdriving the transducers.
MIC/LINE SWITCH
A useful Mic/Line switch helps to adjust the input sensitivity. When used for speech, the [Mic] setting allows using a microphone directly with the speaker. Set the selector to [Line] when using the speaker for live music or playback.
VOLUME KNOB
An easy-to-reach volume knob on the back allows setting the overall volume of the speaker according to its application.
STATUS LEDs
3 status LEDs – Power / Signal / Limiter are provided for monitoring the syste
- 128 dB Max SPL
- 800 Watts 2-way amplifier
- DSP Processing with FiRPHASE and Bass Motion Control
- 1.0” HF driver
- 10” woofer, high power, 2.0” voice coil
- 90° x 60°, wide dispersion constant directivity horn
- Silent Fan-less Class-D Amplifier
- Mylar/Ferrite driver - Kapton former coil
RENTAL PROOF
D-LINE cabinets are molded on a special polypropylene composite material designed to dampen down vibrations even at maximum volume settings. From molding to the final texture, D-LINE offers the maximum reliability and strength for use on the road. The reflex port has been resized to offer better efficiency. The HD 10-A is equipped with a top handle and a side handle with a rubber hand grip for greater portability. At the bottom, a rugged steel pole mount has been installed in all models. The new cabinet shape will allow every D-LINE model to be used as it is, standing on a pole or for stage monitoring. Two M10 threaded inserts are provided for optional mounting hardware in Installed Sound Applications.
SUPERIOR TRANSDUCERS
The powerful 1.0” diaphragm compression driver of the HD 10-A mk5 features extended dispersion control and high efficiency at long distance. The 10” woofer offers an extremely linear response and a precise, deep low-frequency control. All compression drivers and transducers are precision built, taking advantage of RCF’s superior knowledge and experience dedicated to achieving extremely high standards.
Read More
POWERFUL CLASS D AMPLIFIERS
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the D Line amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
HIGHLY DEFINED PERFORMANCE
The cabinet shape makes it easy to use the speaker for stage monitoring. Two M10 threaded inserts are available for optional mounting hardware, making the speakers perfect for use in wall-mounted or flown install applications.
