RCF HDL 18-AS ACTIVE FLYABLE HIGH POWER SUBWOOFER

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

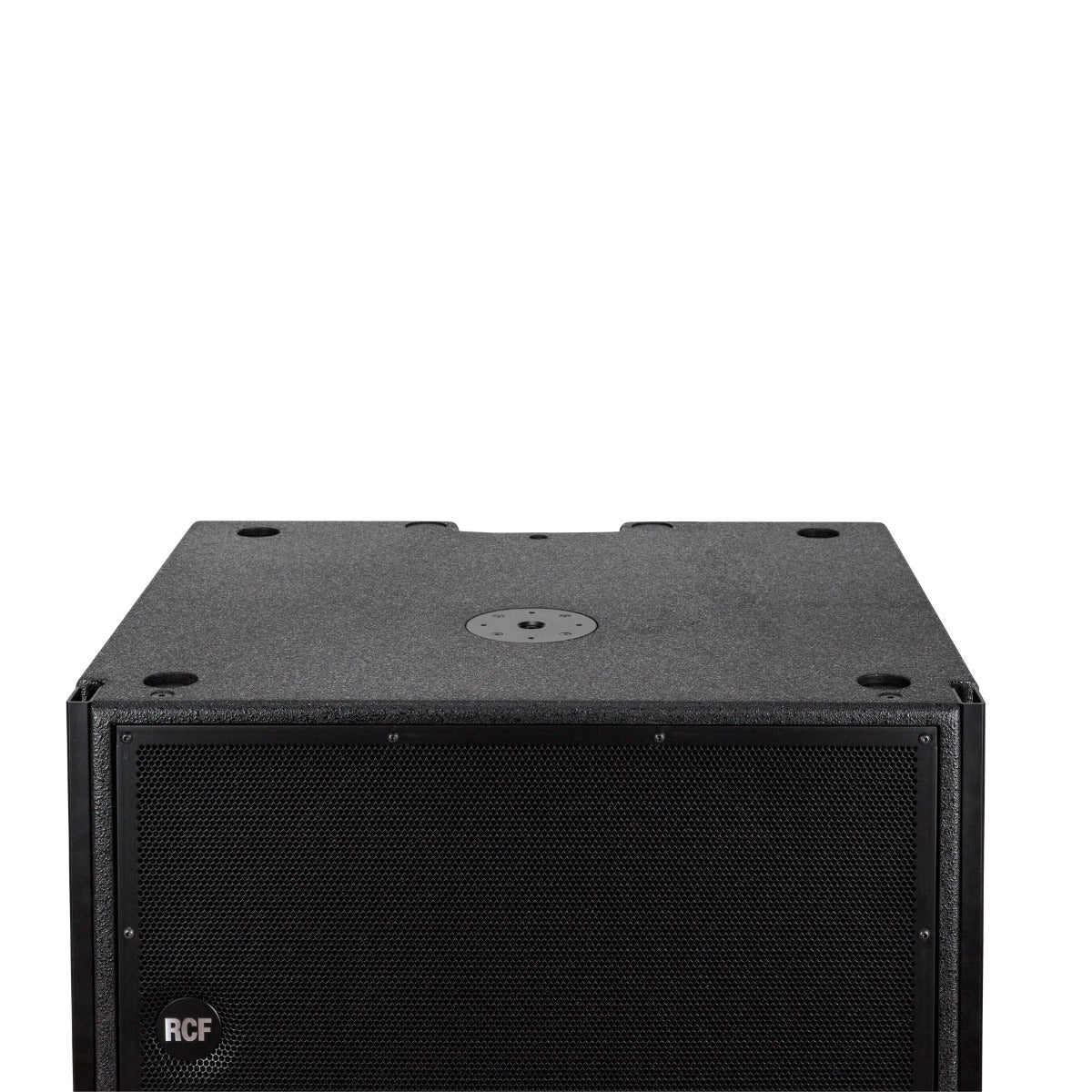

Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11

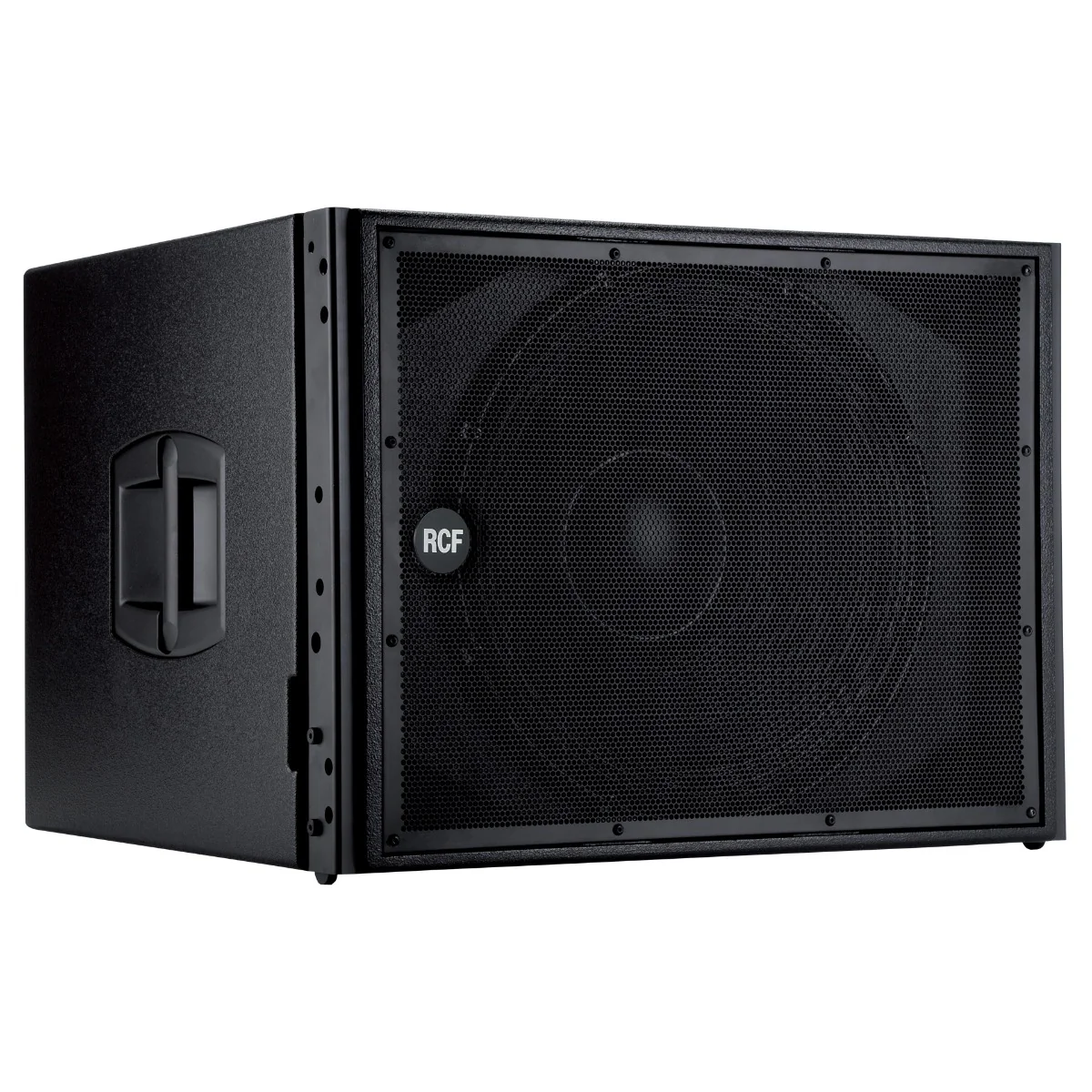

RCF HDL 18-AS ACTIVE FLYABLE HIGH POWER SUBWOOFER

The HDL18-AS is a compact, flyable high power subwoofer, designed to integrate seemlessly into a HDL 20-A flown array. The bass reflex design guarantees a deep, linear power response while the 4ā€ voice coil vented design woofer offers the minimum of power compression. The system provides integrated mechanics compatible with the HDL 20-A array module.

  • 2000 Watt Peak power - 1000 Watt RMS
  • 135 dB max SPL
  • 30 Hz - 140 Hz frequency response
  • 1 x 18" Woofer
  • DSP controlled Input section with selectable presets
  • Tour grade safe and solid variable mechanics, compatible with HDL 20-A
  • Designed to compliment the HDL 20-A speaker system
  • Baltic birch tour grade cabinet

SPECIFICATIONS
Acoustical specifications
Ā
FREQUENCY RESPONSE:Ā 30 Hz Ć· 140 Hz
Ā
MAX SPL @ 1M: 135 dB
Ā
Transducers
Ā

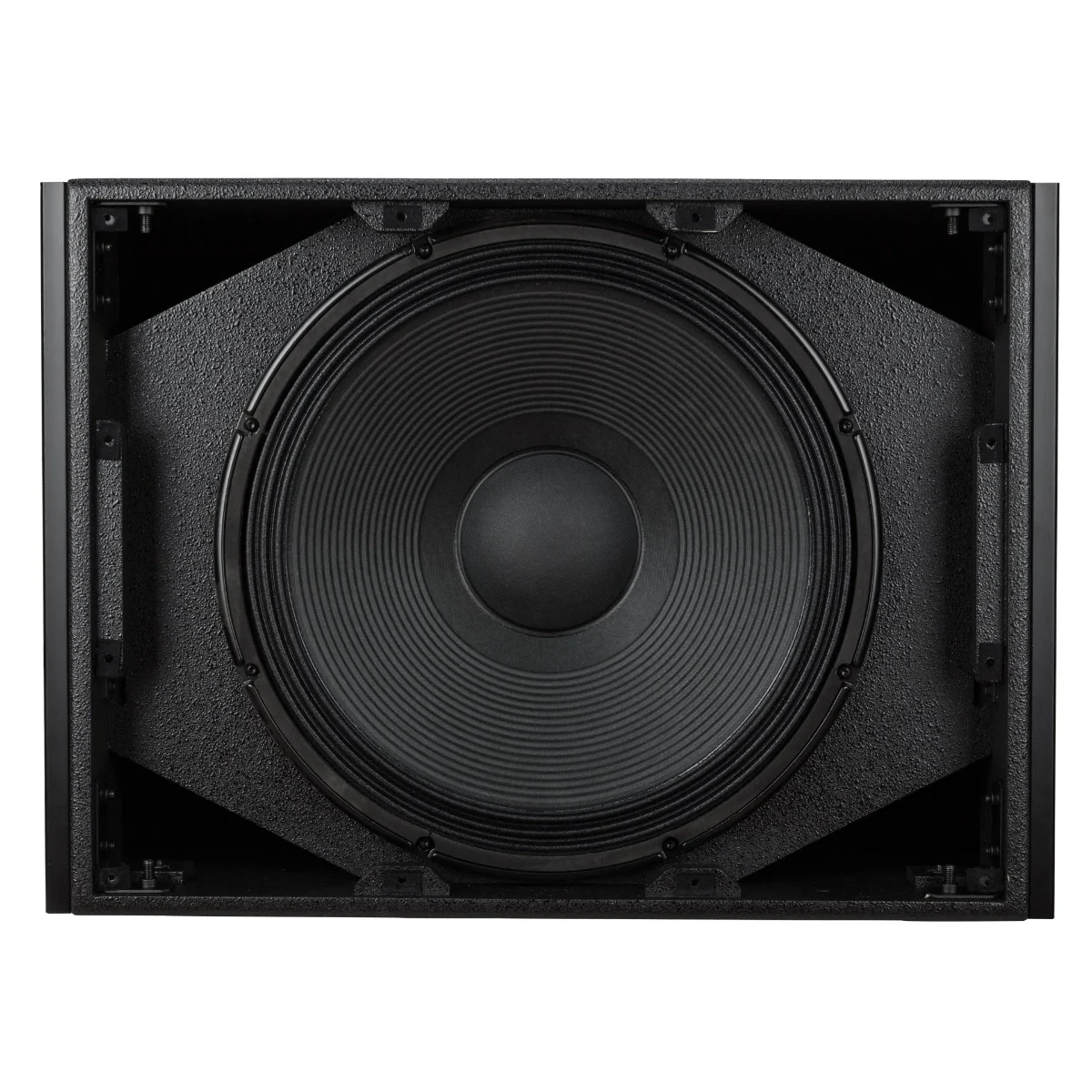

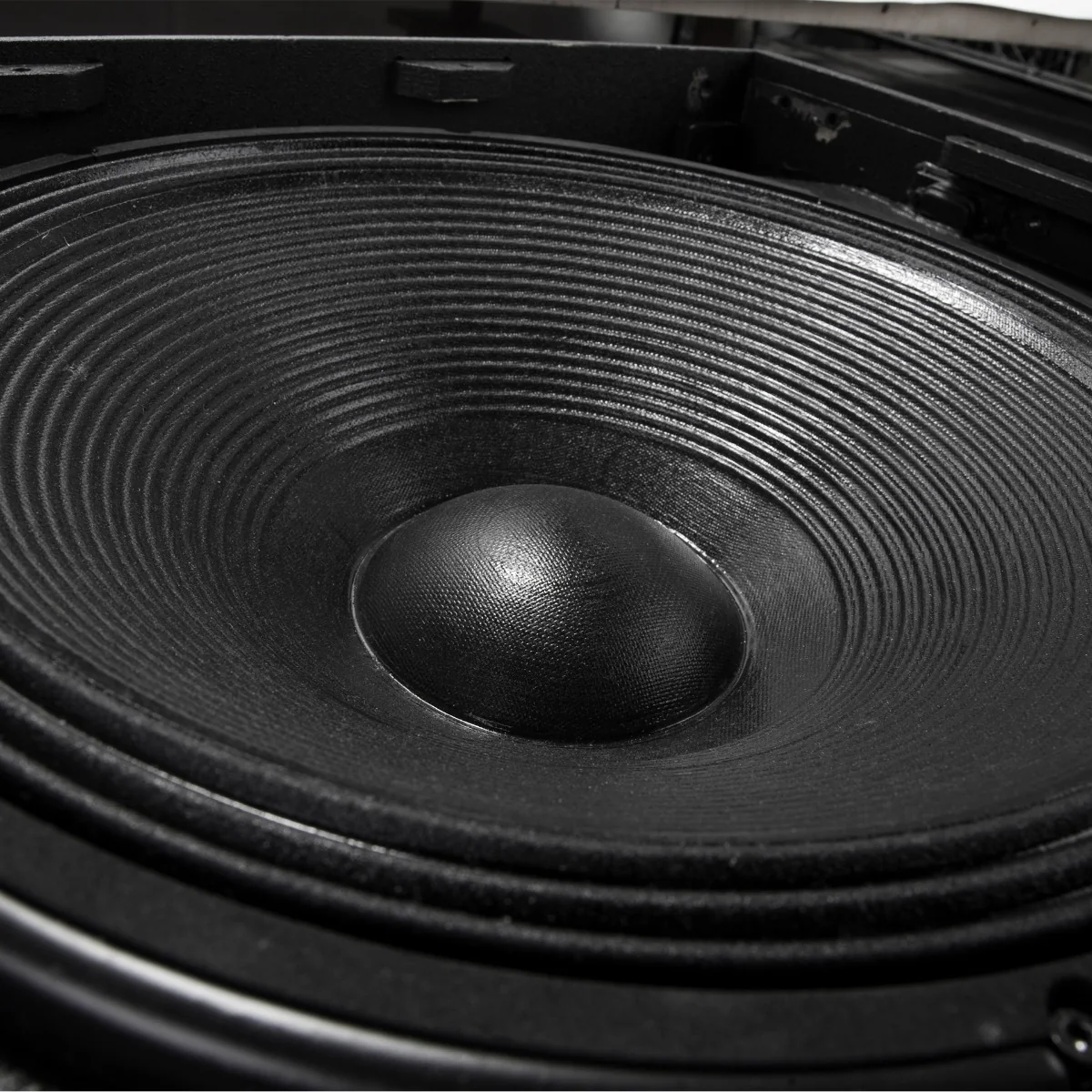

WOOFER:Ā 18'', 4.0'' v.c
Ā

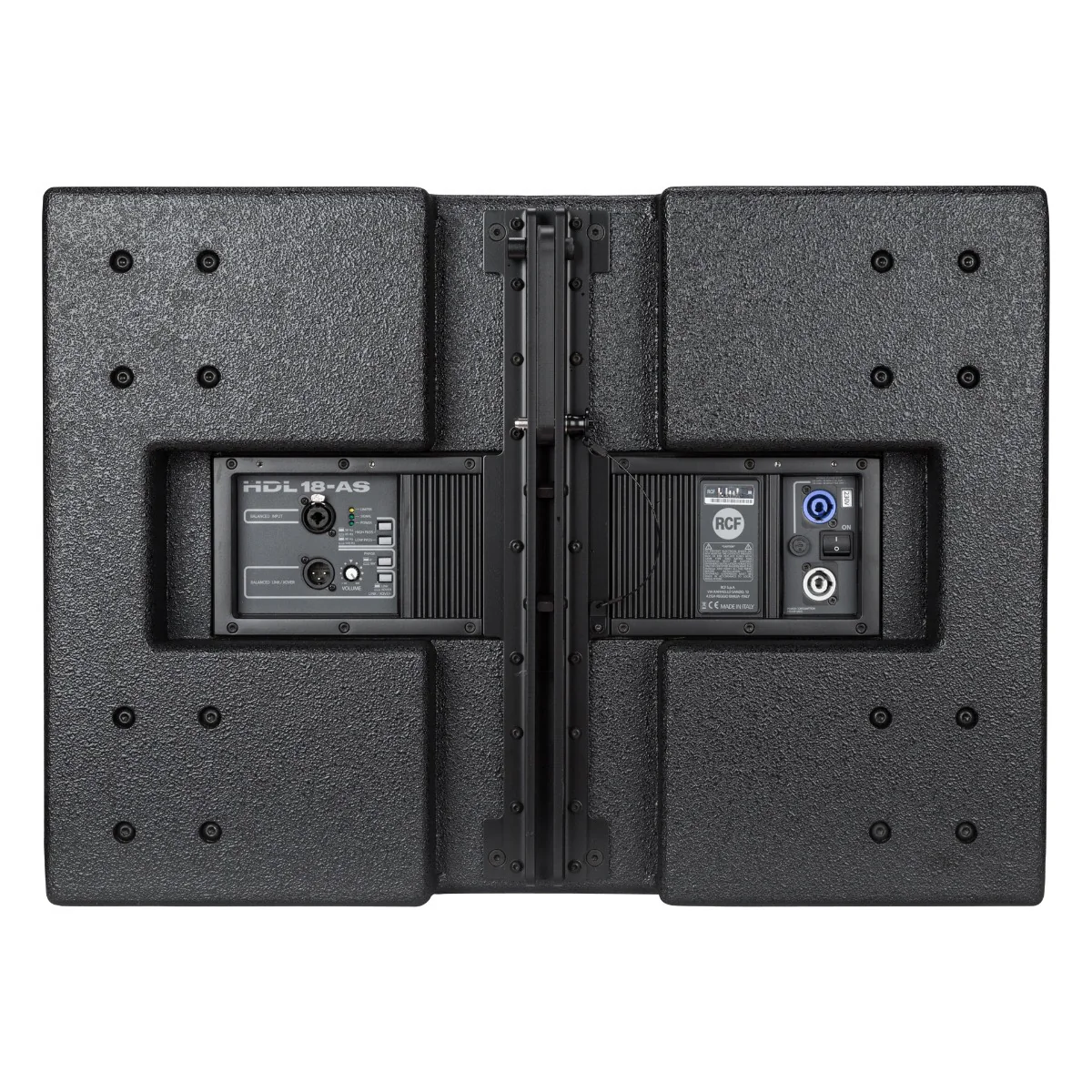

Input/Output section
Ā
INPUT SIGNAL: bal/unbal
Ā
INPUT CONNECTORS: XLR
Ā
OUTPUT CONNECTORS:Ā XLR
Ā
INPUT SENSITIVITY: -2 dBu/+4 dBu
Ā
Processor section
Ā
HI-PASS FREQUENCIES:Ā 30Hz, 45Hz
Ā
LOW-PASS FREQUENCIES:Ā 90Hz, 140Hz
Ā
PROTECTIONS: Thermal, RMS
Ā
LIMITER: Soft Limiter
Ā
CONTROLS: Volume, EQ shape, Xover
Ā
Power section
Ā
TOTAL POWER:Ā 2000 W Peak, 1000 W RMS
Ā
LOW FREQUENCIES: 2000 W Peak, 1000 W RMS
Ā
COOLING: Convection/Forced
Ā

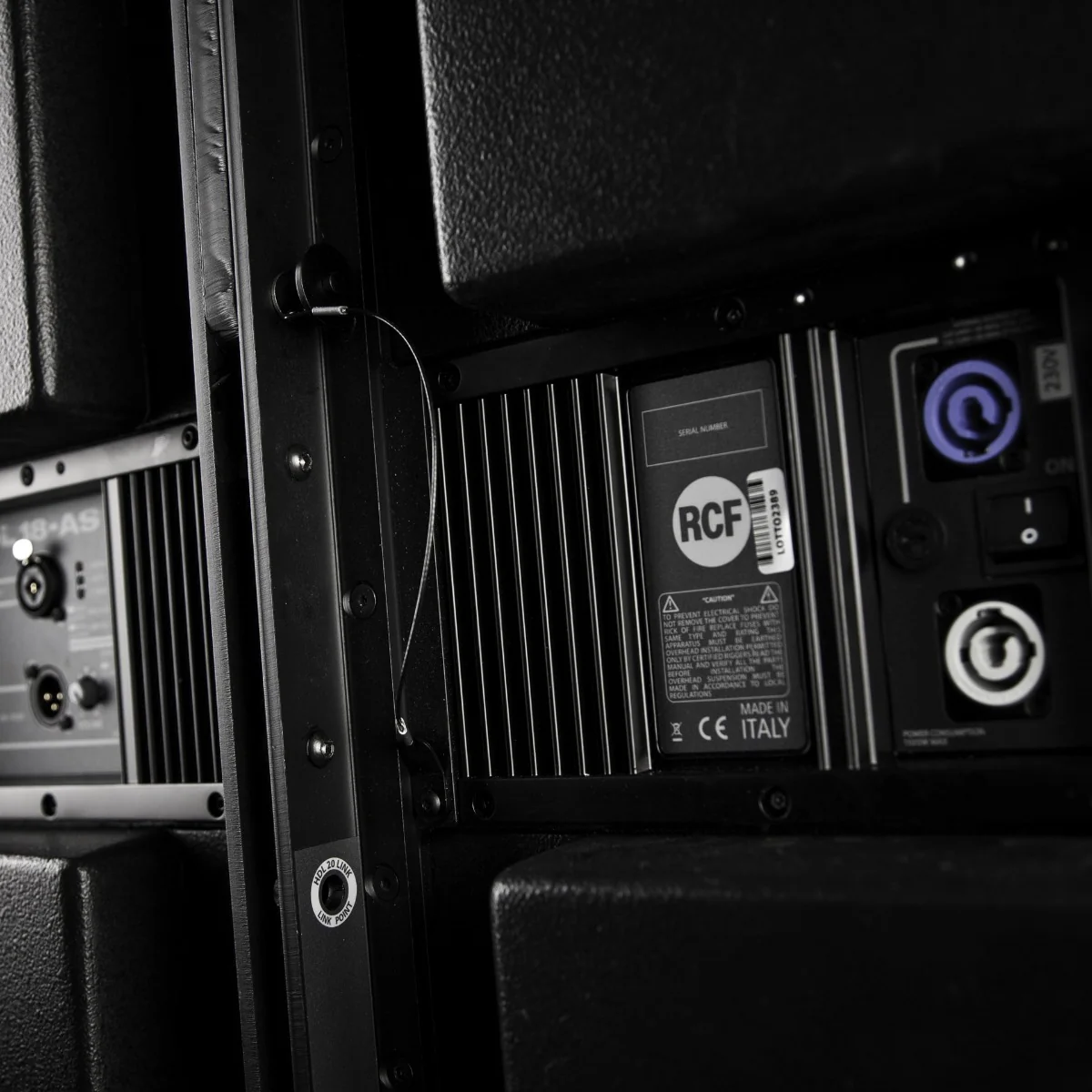

CONNECTIONS: Powercon IN/OUT
Ā
Physical specifications
Ā
CABINET/CASE MATERIAL: Baltic birch plywood
Ā

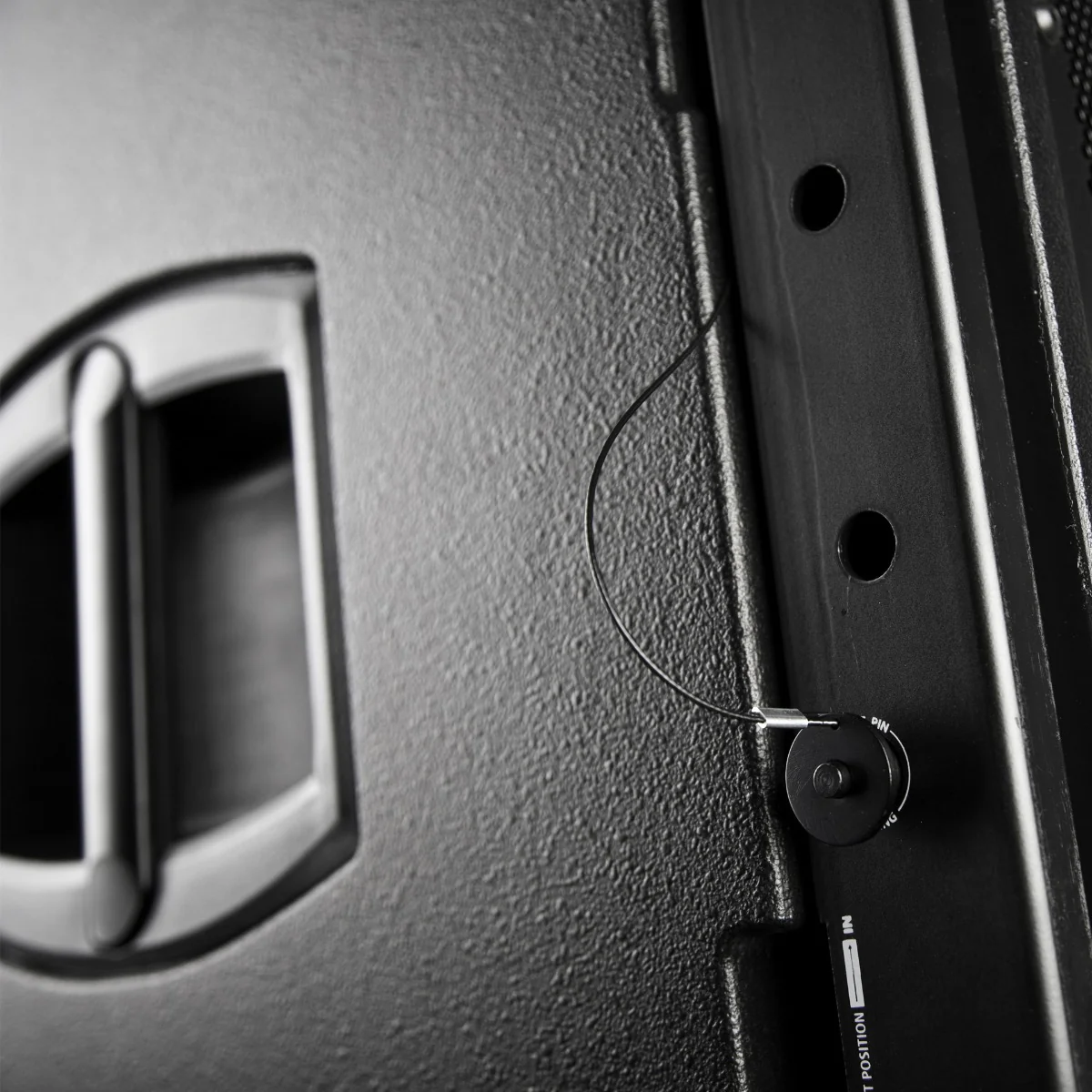

HARDWARE: Rigging flyware, M20 insert
Ā

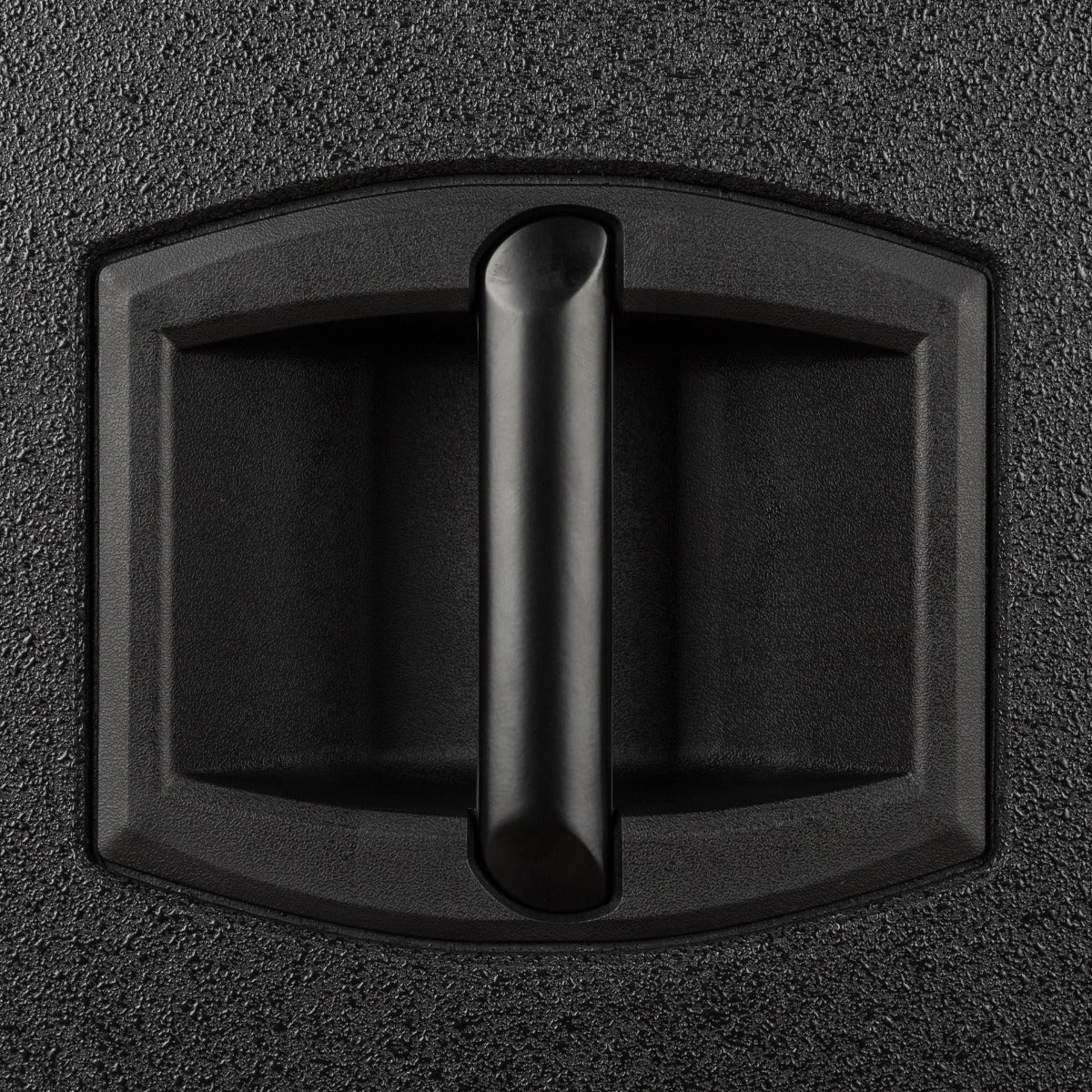

HANDLES: 2 side
Ā
GRILLE: Steel
Ā
COLOR: Black
Ā
Size
Ā
HEIGHT:Ā 512 mm / 20.16 inches
Ā
WIDTH: 700 mm / 27.56 inches
Ā
DEPTH: 620 mm / 24.41 inches
Ā
WEIGHT: 53 kg / 116.84 lbs
Ā
Shipping informations
Ā
PACKAGE HEIGHT:Ā 639 mm / 25.16 inches
Ā
PACKAGE WIDTH: 814 mm / 32.05 inches
Ā
PACKAGE DEPTH: 734 mm / 28.9 inches
Ā
PACKAGE WEIGHT: 60.2 kg / 132.72 lbs
