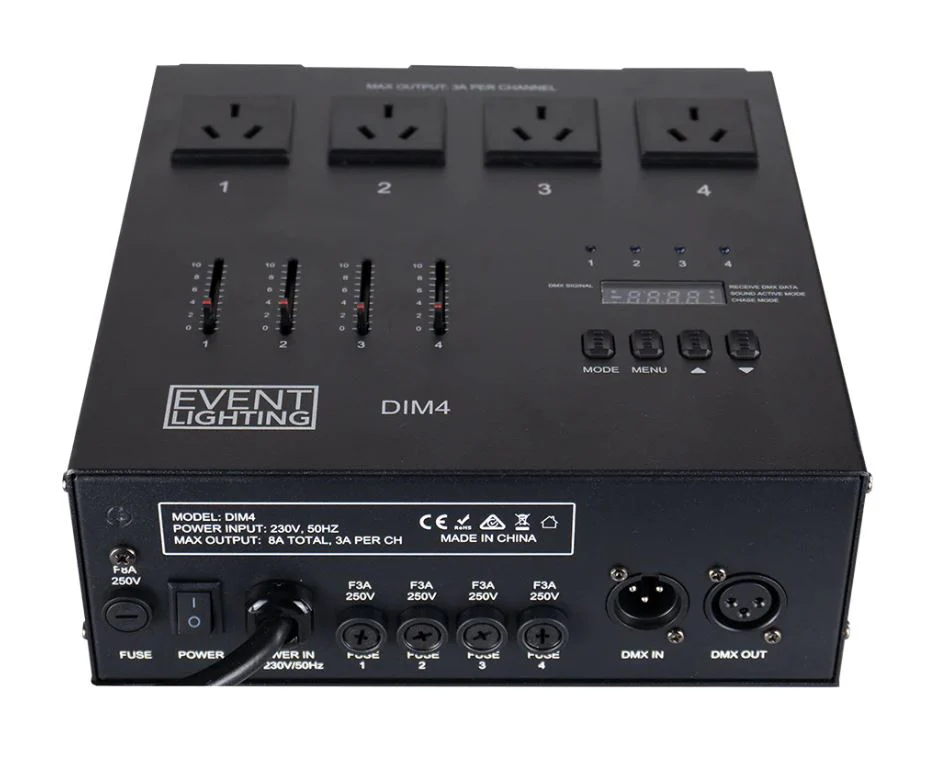

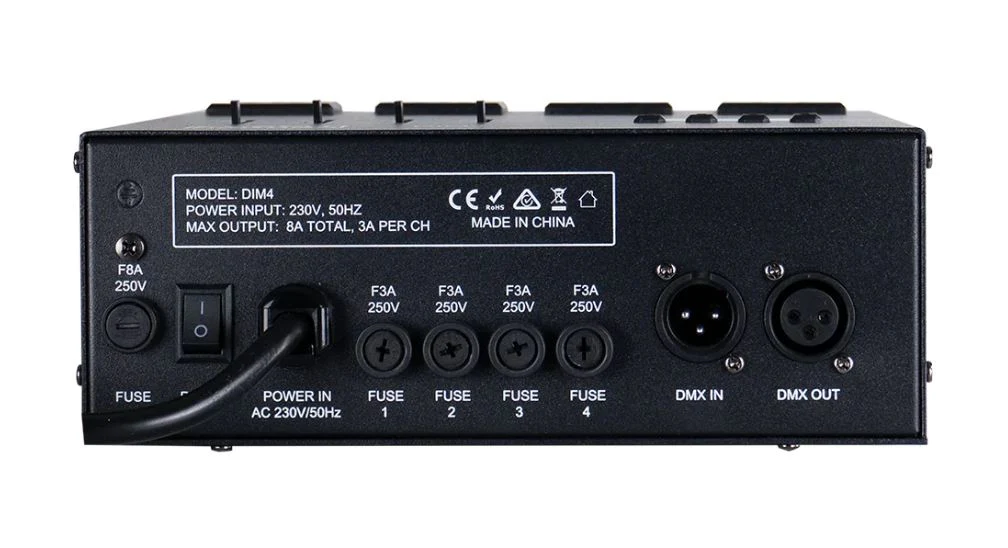

EVENT LIGHTING DIM4 - 4 channel DMX Dimmer/Switch
The DIM4 is a dimming pack with four output channels, each of which can be loaded up to 3A. The DIM4 can be controlled using its built-in chaser and sound control functions, or by using DMX.
Power
- Input Voltage: 230V AC, 50 Hz
- Fuse: 8A/250V
- Fuse Per Channel: 3A/250V
- Channel Output: Max. of 3A per channel, maximum of 8A total across all 4 channels
- Connections: 4x power sockets
Control
- Operation modes: DMX512, stand alone, sound active, local control
- DMX channels: 1/2/4
- Interface: 3-pin XLR in/out
- Mode: Dimmer or Switch
Housing
- Dimensions: 220*82*275 mm
- Weight: 3.5 kg
$83.51
Original: $238.61
-65%EVENT LIGHTING DIM4 - 4 channel DMX Dimmer/Switch—
$238.61
$83.51Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The DIM4 is a dimming pack with four output channels, each of which can be loaded up to 3A. The DIM4 can be controlled using its built-in chaser and sound control functions, or by using DMX.
Power
- Input Voltage: 230V AC, 50 Hz
- Fuse: 8A/250V
- Fuse Per Channel: 3A/250V
- Channel Output: Max. of 3A per channel, maximum of 8A total across all 4 channels
- Connections: 4x power sockets
Control
- Operation modes: DMX512, stand alone, sound active, local control
- DMX channels: 1/2/4
- Interface: 3-pin XLR in/out
- Mode: Dimmer or Switch
Housing
- Dimensions: 220*82*275 mm
- Weight: 3.5 kg
