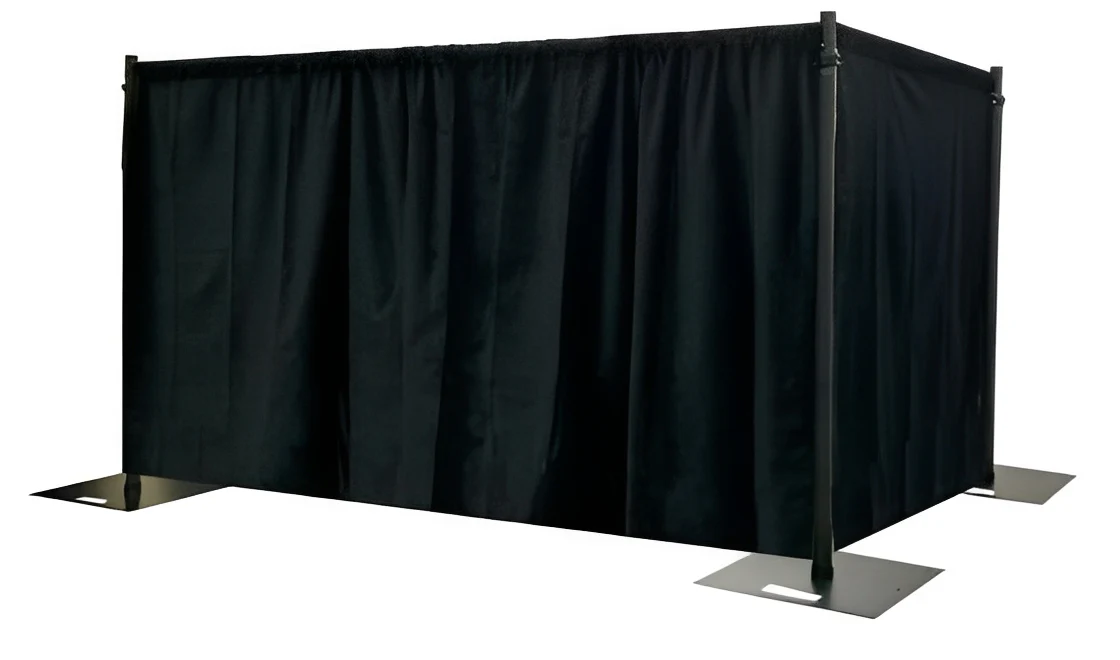

Aluminium Pipe and Drape support system / Ops Surround / backdrop kit with drapes

Aluminium Pipe & Drape system / Drape Support system

Ops Surround kit complete with drapes and carry bags

Max dimensions 3m L x 1.5m D x 1.5m H

Min dimensions 1.3m L x 0.9m D x 0.9m H

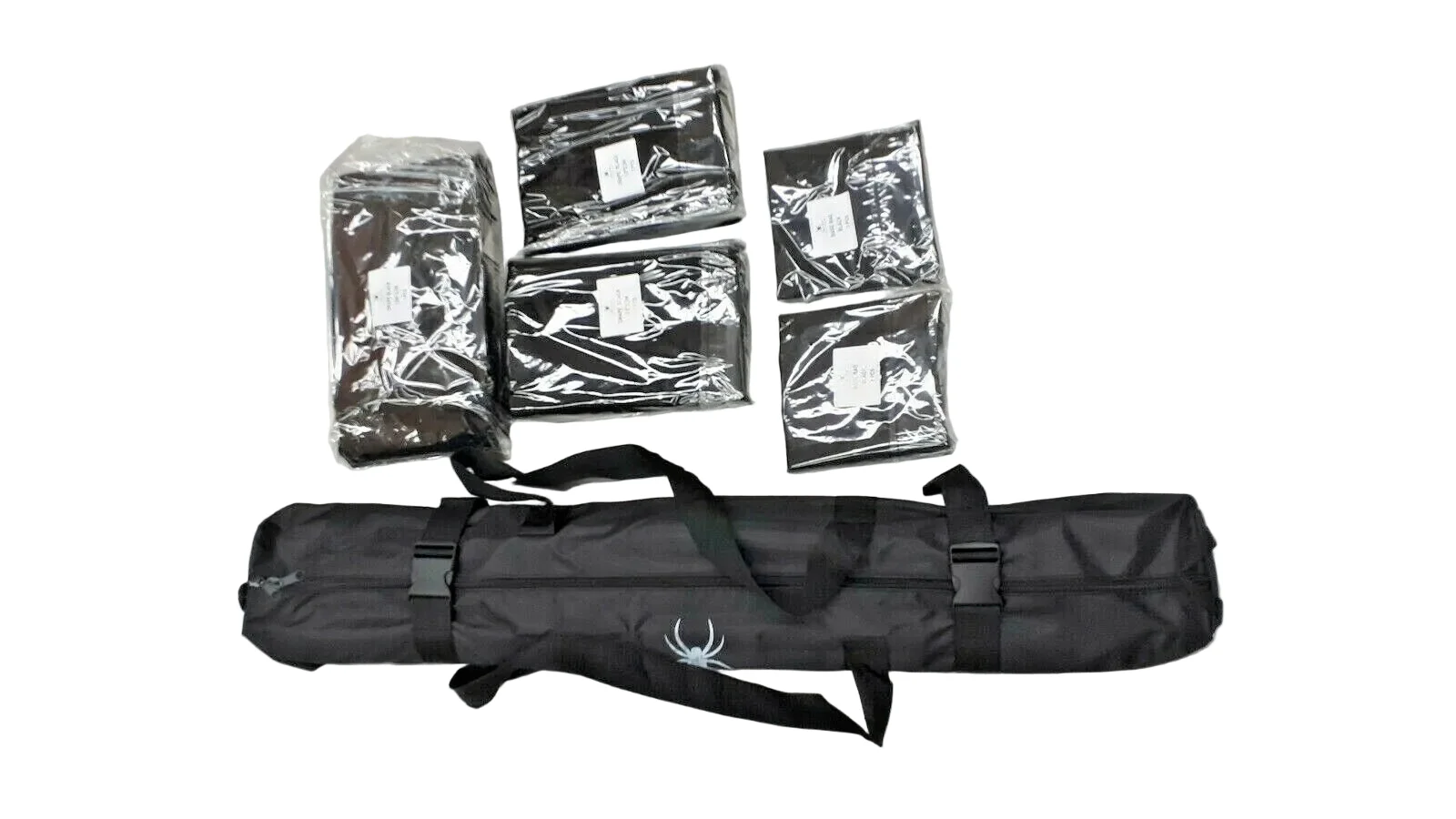

Kit includes:

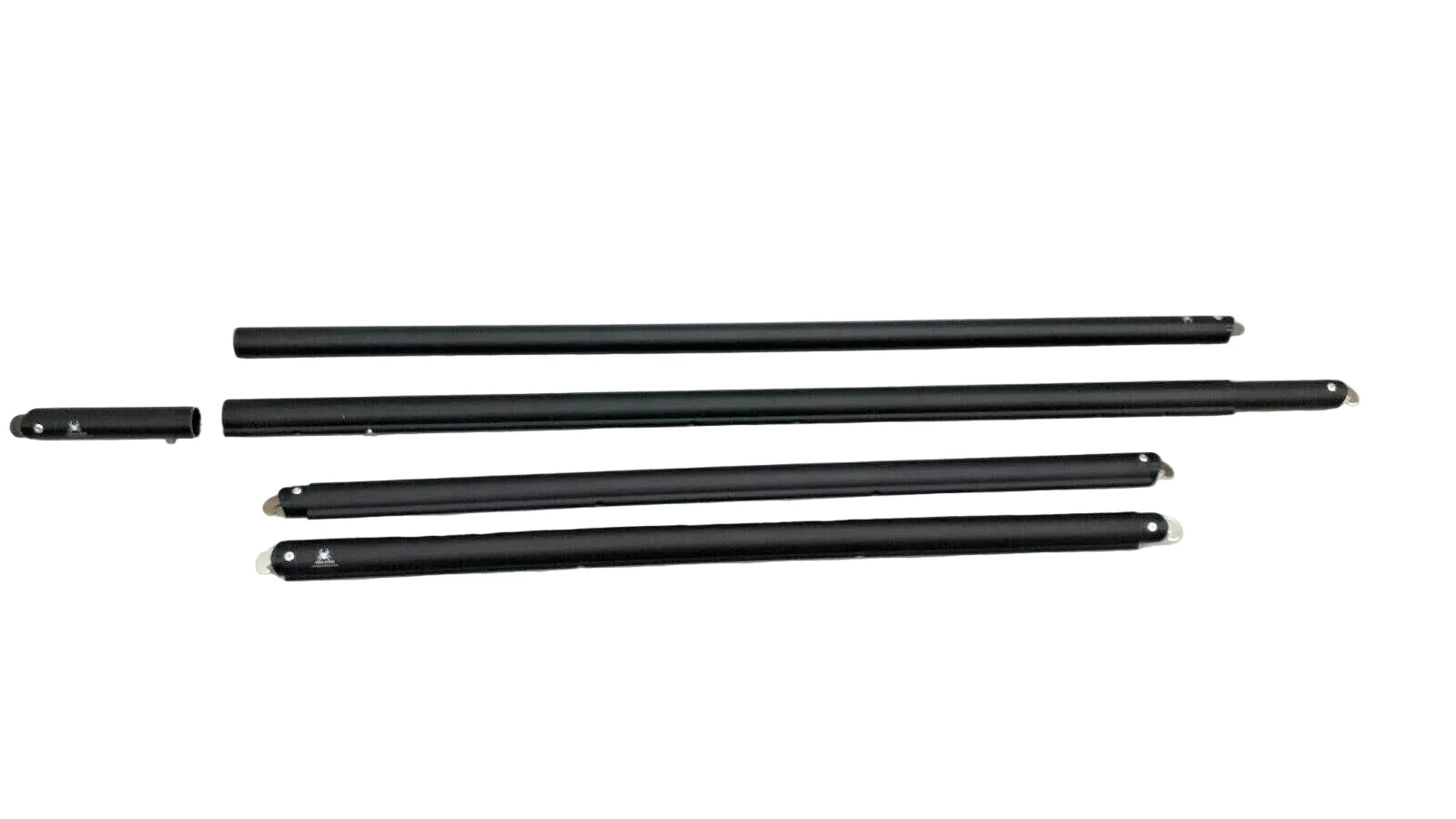

4x black telescopic uprights - height adjustable from 0.9m - 1.5m

1x black universal telescopic cross bar which can be adjusted from

    1.3m to 3m in width

2x black crossbars - telescopic adjustable from 0.9m to 1.5m

4x 300x300x10mm black base plates with spigots

1x drape - 4.5m wide x 1.5m drop - 200gms black velveteen

2x drapes - 2.2m wide x 1.5m drop - 200gms black velveteen

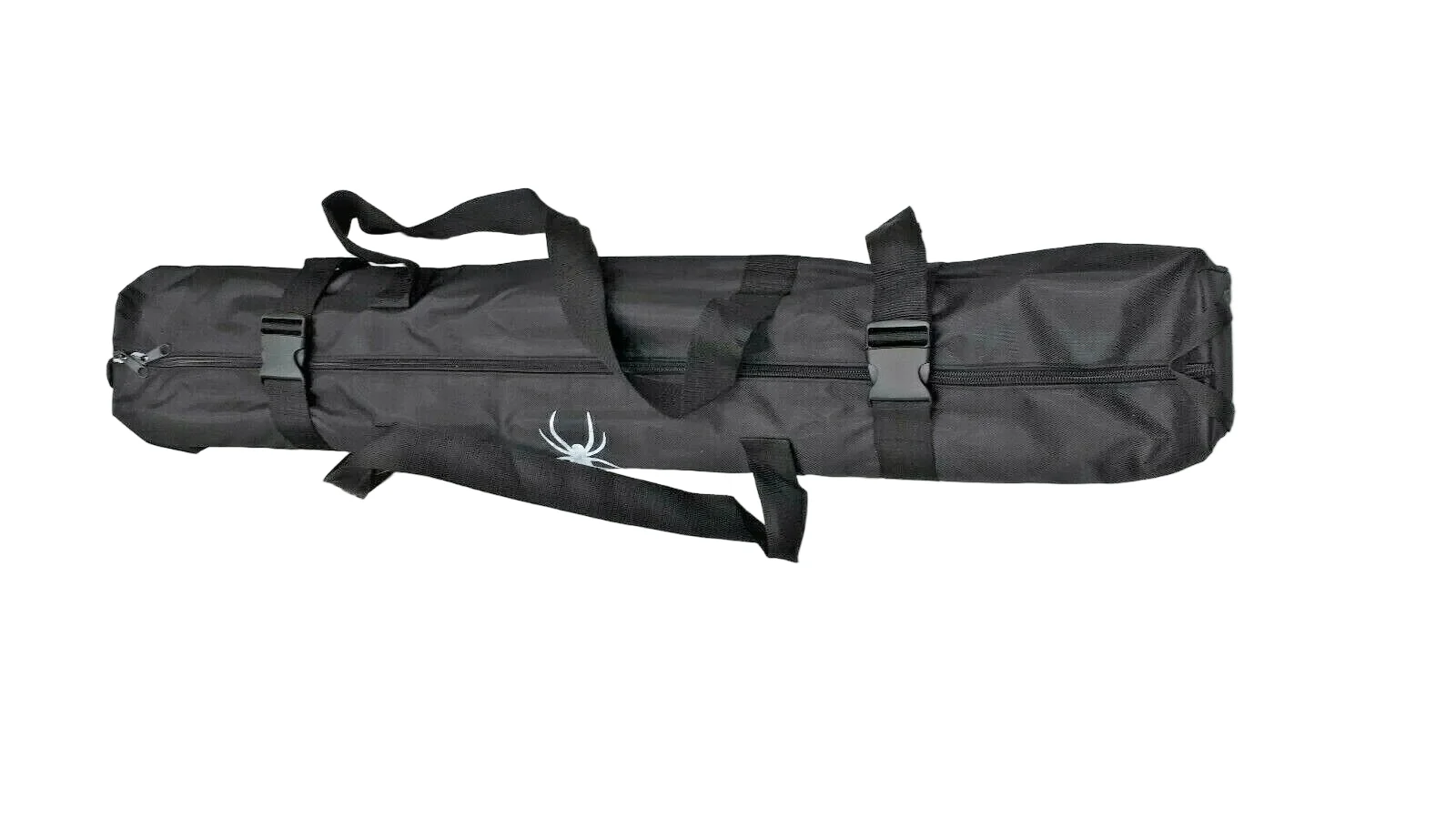

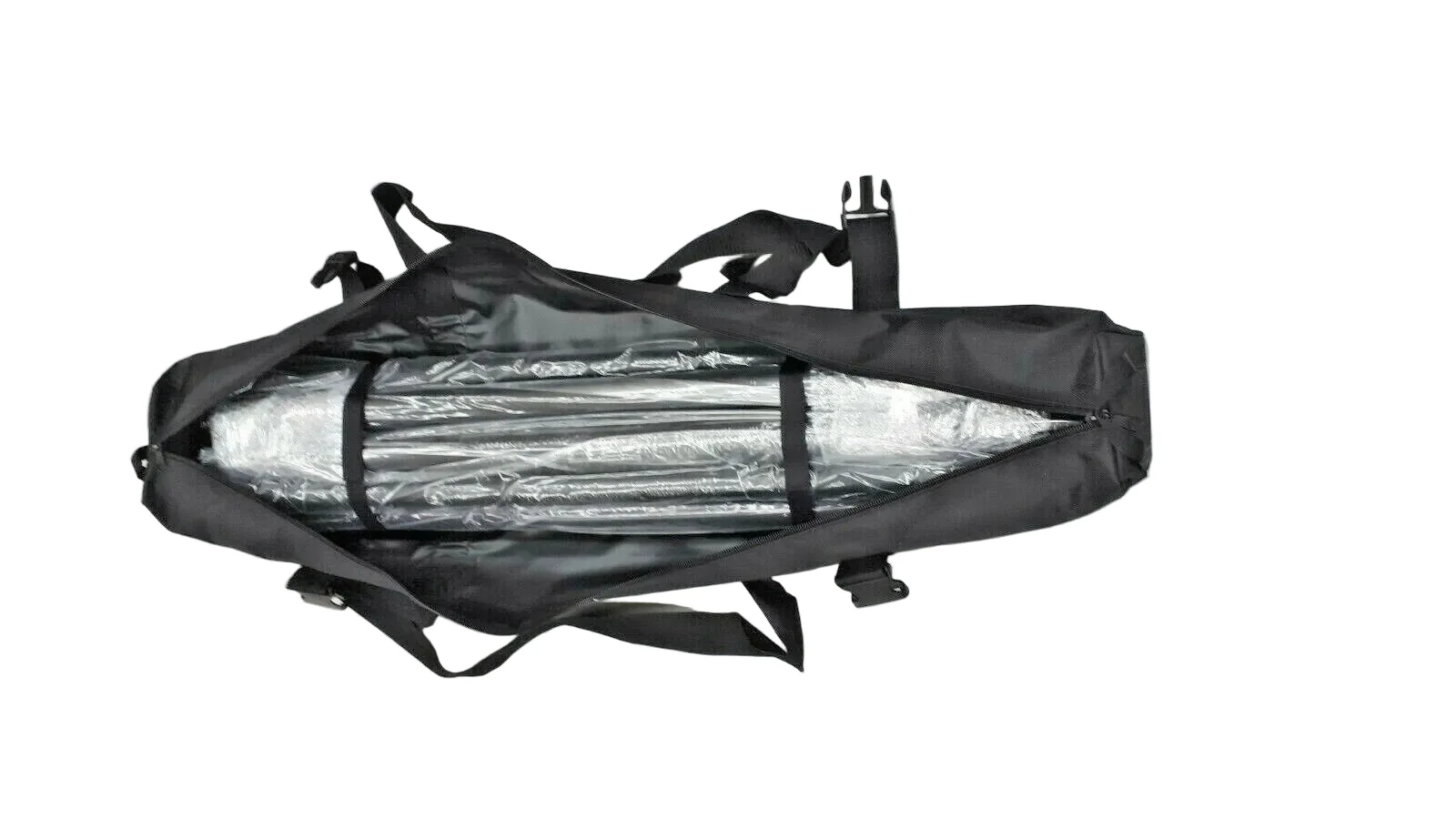

1x carry bag for all pipes

2x carry bags for base plates



The Drape Support system is is extremely mobile, lightweight and easy to set up. Ideal for

ops surround, mobile/stage backdrops, and enclosing preparation areas.

It can be set up in-line which will result in 6m span, or in a "U" shape or

"L" shape.

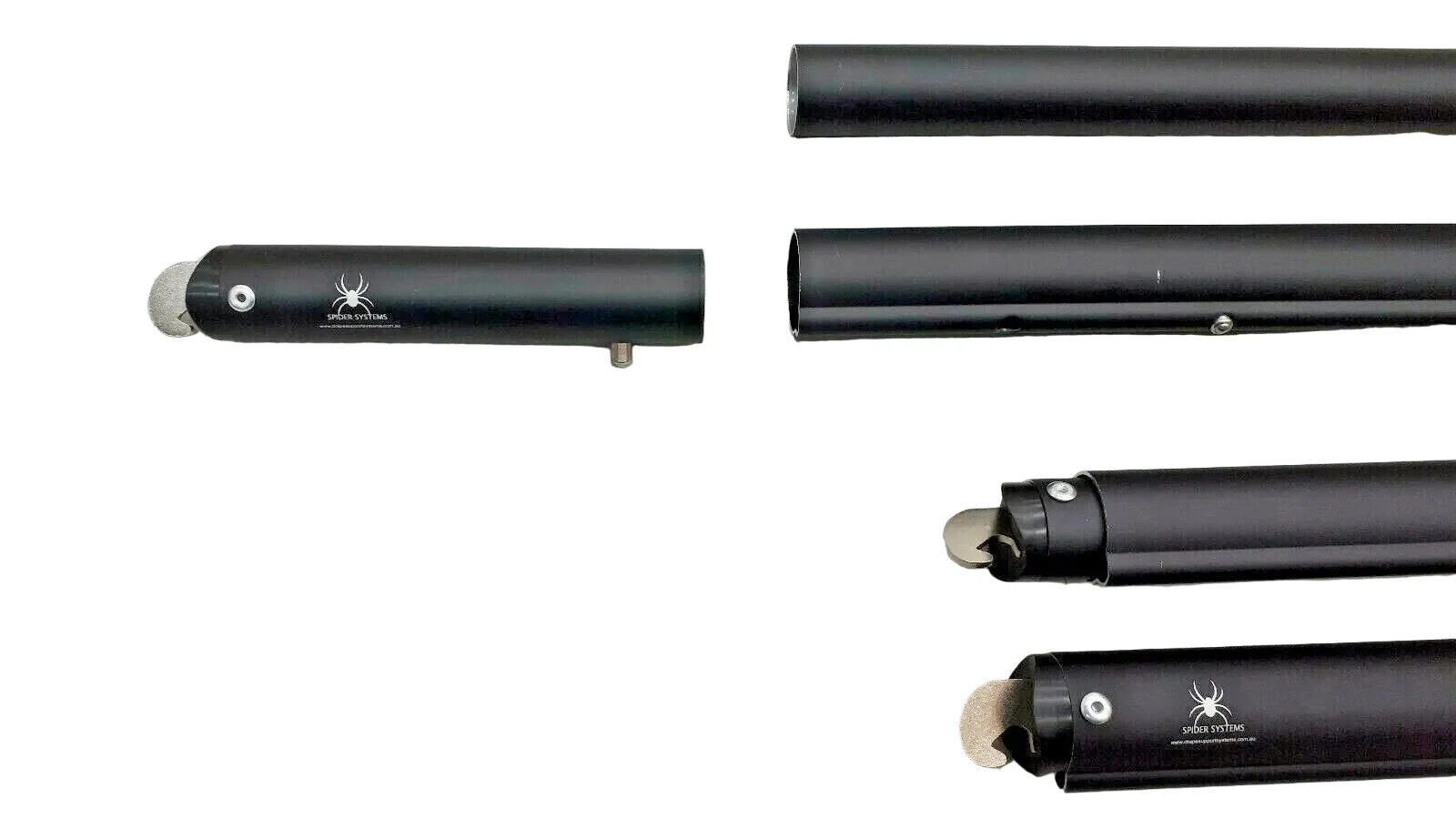

• Lightweight aluminium telescopic uprights quickly adjust to any height from 0.9m to 1.5m , and come pre fitted with a steel slotted top hat so up to 4 horizonal crossbars can be attached to each upright
• Supplied 1x universal cross bar which can be adjusted from 1.3m to 3m wide. And 2x telescopic cross bars which can be adjusted from 0.9-1.5m in width. Lightweight aluminium crossbars come with steel hooked ends which slot into the top hat.
• Heavy duty steel base plates supplied with  spigots
• Extra sections can be added to cover wider areas (please enquire)

Applications: Theatrical Drapes, Installing of Drapes in all Media related

environments, Schools, Theatres, Conferences, Exhibitions
